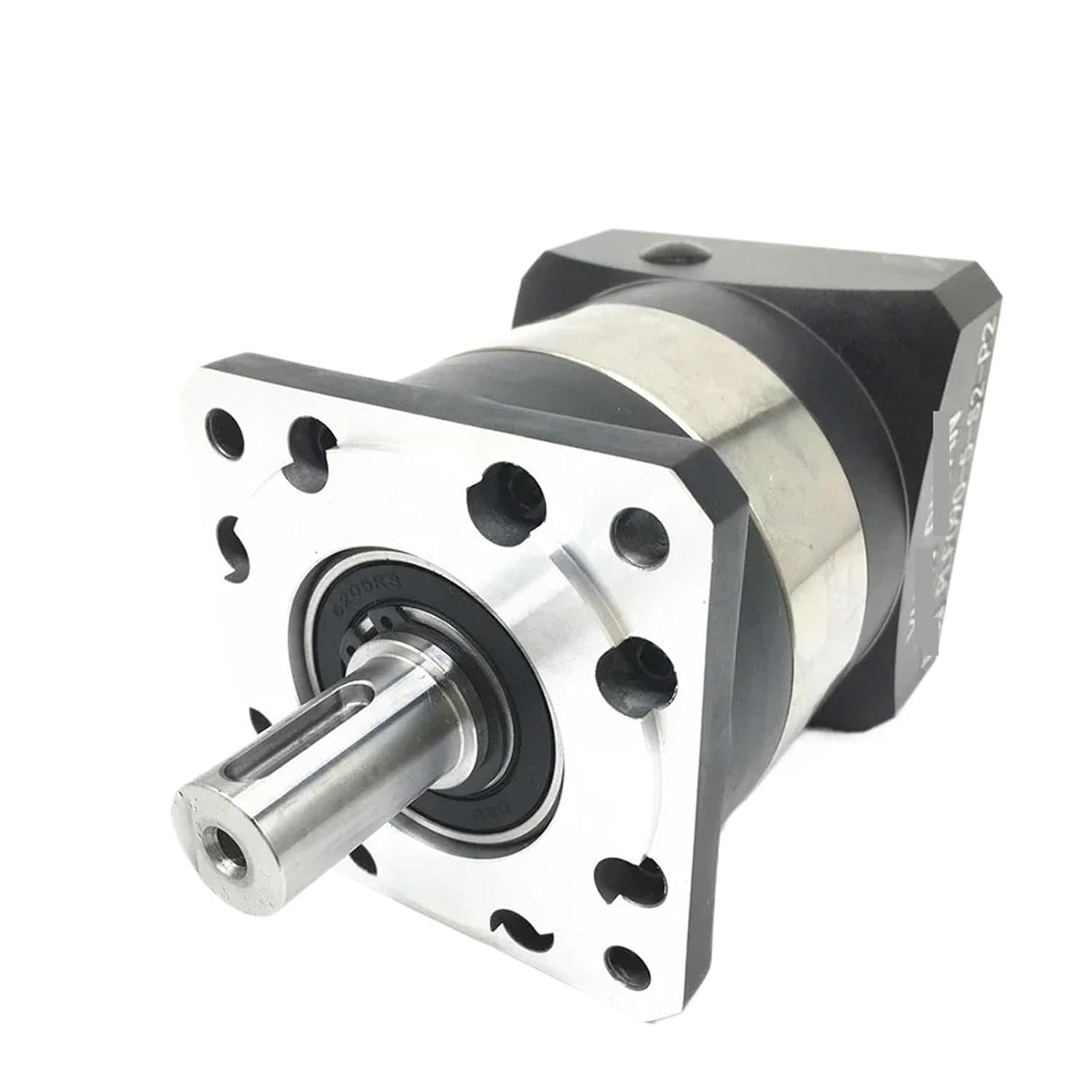

Planetary Gear Reducer Planetary Gearbox 7 arc Minutes 80/90mm Flange 750W servo Motor Positive Input Speed Ratio(Input Shaft 19mm,Ratio 3 to 1)

Rotary ShaftsStage (L1): 3:1 / 4:1 / 5:1 / 7:1 / 10:1Stage (L2): 15:1 / 20:1 / 25:1 / 30:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:13. Input shaft: 16mm / 19mm4. Output shaft: 20mm5. Maximum torque: 1.5 times rated torque6. Emergency braking torque: 2*rated torque7. Full load efficiency: L1 96% L2 94%8.Equipped motor model:80mm flange servo motor (16mm input)80mm/90mm flange servo motor (19mm input)9. Reverse clearance accuracy: L1 7 arc minutes L2 12 arc minutes

• Rotary Shafts
• High-efficiency transmission:All through the gear precision meshing to reduce energy loss; suitable for long-term high load operation
• Compact structure:Space-saving design reduces the size of the reducer; suitable for narrow installation environments
• Flexible transmission ratios:Wide range of single-stage ratios; higher ratios can be realized with multi-stage combinations; suitable for diverse needs
• Stable operation and low noise:Iow continuous vibration; reduced impact; low noise
