JBL 4086AM 8-Channel Class D Amplifier Design with Digital Signal Processing

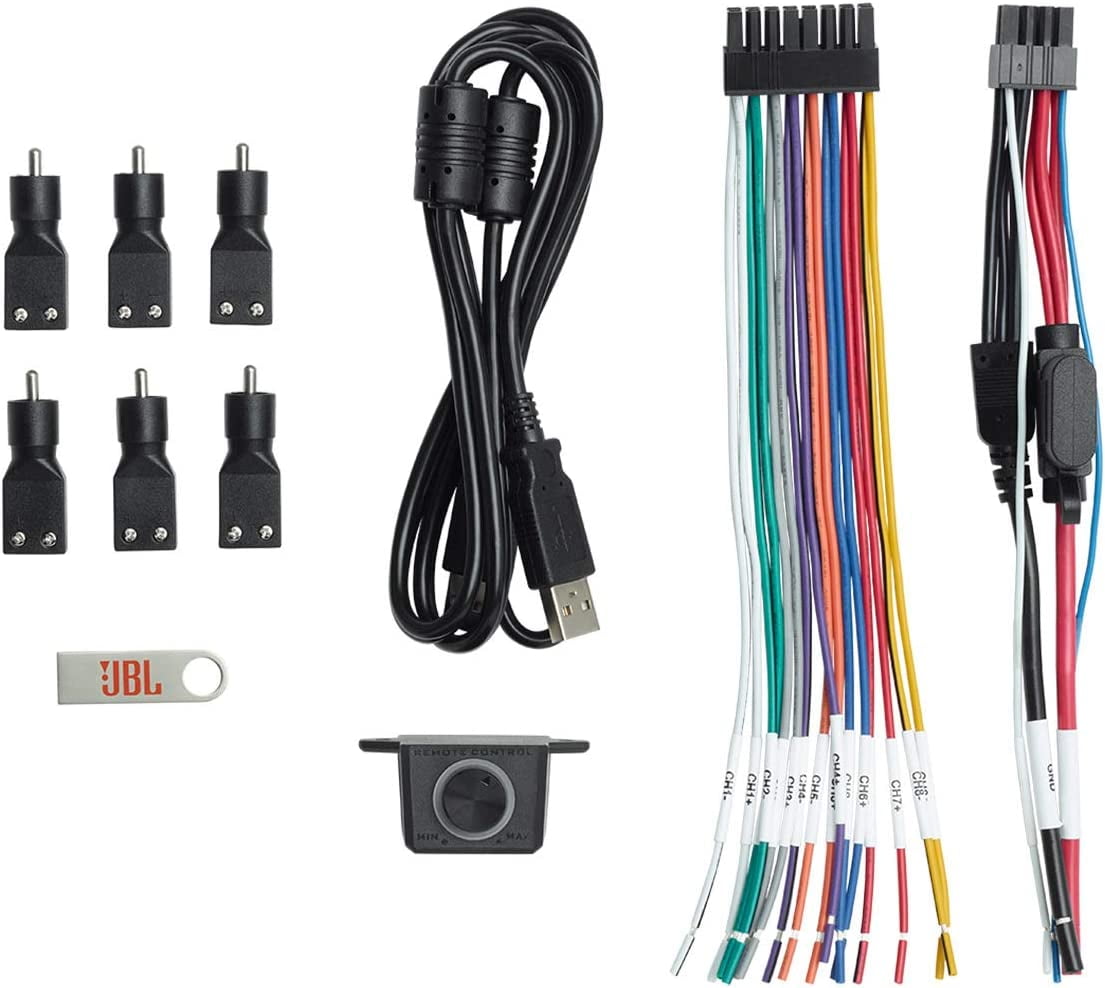

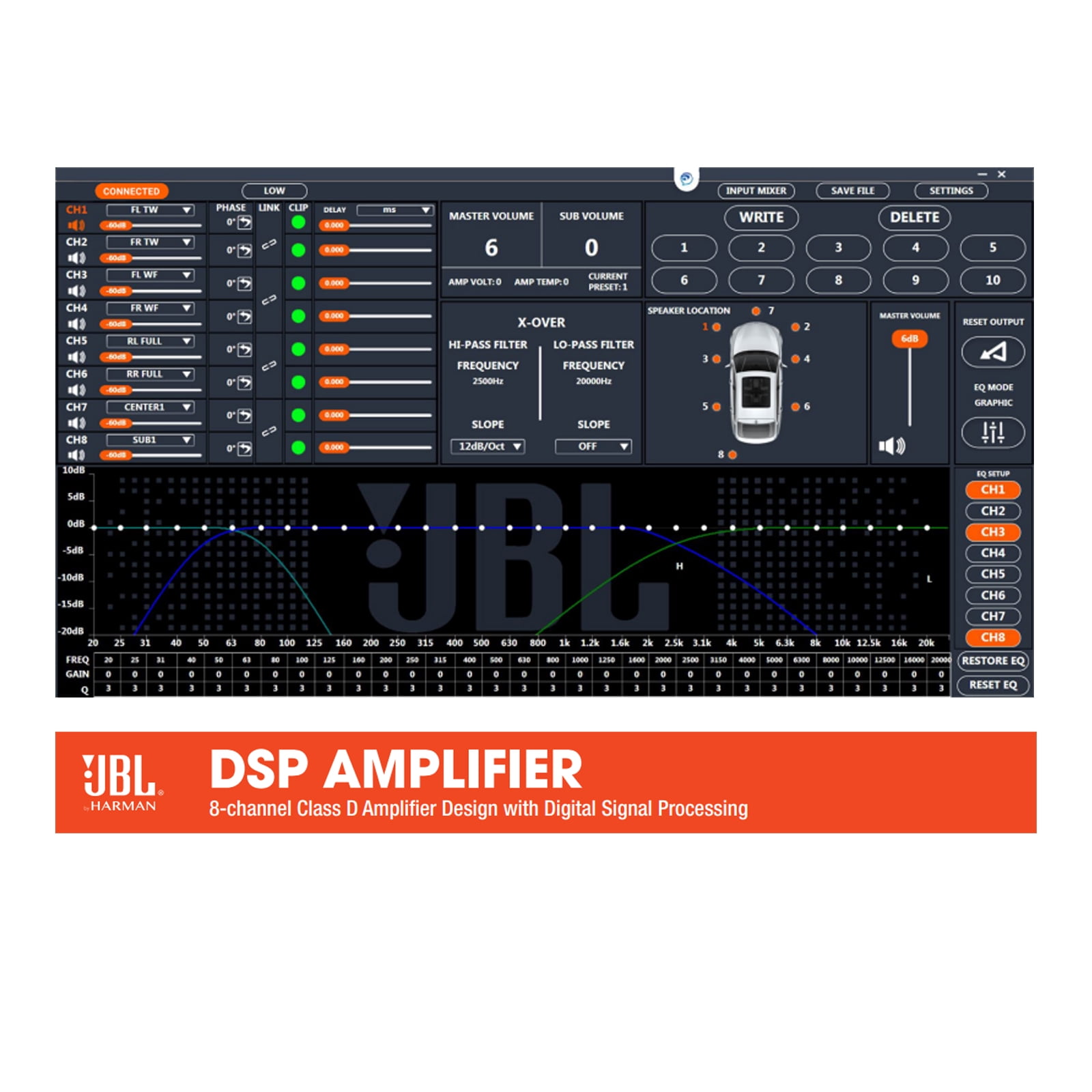

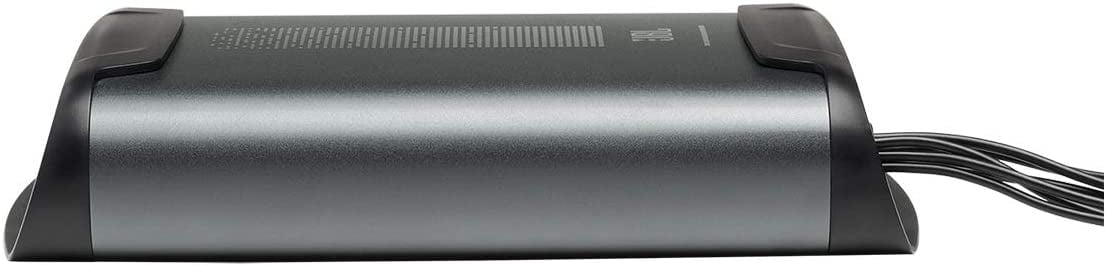

<h1>JBL DSP4086<br>8-Channel Car Amplifier With Digital Signal Processing — 40 Watts RMS x 8</h1> <p>One of the best ways to get superior sound fidelity in your car is to add an amplifier to pump up the power, along with a digital signal processor to fine-tune the sound quality. JBL's incredibly compact DSP4086 8-channel amp/processor will do both, providing eight channels of 40 watts RMS while sculpting the sound with powerful tuning software using your Windows PC.&nbsp;Connecting to the whole system. The DSP4086 was designed to take the signals from your vehicle's front speakers, rear speakers, front center channel, and rear subwoofer. You can then process those signals to create eight powered outputs, and you have the ability to power and control your front tweeters.</p> <h2>Product Highlights:</h2> <ul><li>8-channel car amplifier with digital signal processing <ul><li>40 watts RMS x 8 at 4 ohms</li><li>60 watts RMS x 8 at 2 ohms</li></ul> </li><li>DSP and EQ tuning tool adjustments made via USB connection to a Windows PC <ul><li>Save up to 10 presets</li></ul> </li><li>Inputs: 6 assignable preamp and speaker-level (RCA adapters included)</li><li>Outputs: 8 powered and processed</li><li>Adjustment Details:</li><li>31-band EQ (selectable parametric or graphic)</li><li>Adjustable high-, low-, and band-pass filters (20-20,000 Hz) <ul><li>Selectable filter slopes 6, 12, 18, 24, 30, 36, 42, 48 dB/octave)</li></ul> </li><li>Adjustable delay: 0 to 12ms in 0.2ms increments</li><li>Phase adjustment: 0 or 180°</li><li>Programming done by a Windows-run PC</li><li>Other Features:</li><li>Includes wired remote for ch 7/8</li><li>Fuse rating: 40A x 1</li><li>Wiring and hardware not included with amplifier <ul><li>8-gauge power and ground leads recommended</li></ul> </li><li>Dimensions: 5-11/16"W x 2"H x 9-3/8"D</li><li>Warranty: 1 year</li><li>Our 30-day money-back guarantee</li><li>MFR # DSP4086AM</li></ul> <p><strong>Amplifier:</strong> The DSP4086 features an ultra-efficient class-D amplifier that can provide 40W RMS @ 4Ω to each of the eight output channels, and 60W @ 2Ω. Internal conformal-coated PCBs are designed to withstand the harsh conditions of vehicle use and provide consistent power.</p> <p><strong>Inputs:</strong> The DSP4086's built-in input harness features 6 RCA connectors for use with aftermarket radios with pre-amp outputs. If installing the processor with a factory radio, 6 RCA adapters with set-screw inputs let you connect to factory speaker-level signals. The software-based configuration lets you sum together separate tweeter, midrange, and woofer channels to a full-range signal that can be assigned to any of the 8 outputs. Input signals can range from 680mV all the way up to 15V.</p> <p><strong>Outputs:</strong> The JBL processor/amplifier includes 8 powered speaker outputs on a removable 16-pin harness. Each output can provide 40W @4Ω and can be assigned to any of the input channels. Channels 7 &amp; 8 can be assigned as subwoofer outputs, and can have their output level controlled via the included wired remote control.</p> <p>&nbsp;</p>

• Small footprint, All-in-One Class D Amplifier with DSP Control: JBL DSP Amplifier has everything you need to create a professional sound quality audio system with the ability to mount your amplifier in tight spaces.
• Everything You Need to Get Started: JBL DSP Amplifier has everything you need to create an audio system, or expand your existing one, plus the ability to add more power by using it as a line driver when you are ready for your next power upgrade.
• Simple Tuning Interface with Complex Features: Easy-to-use tuning interface anyone can understand, learn and control with enough horsepower to satisfy experienced installers.
