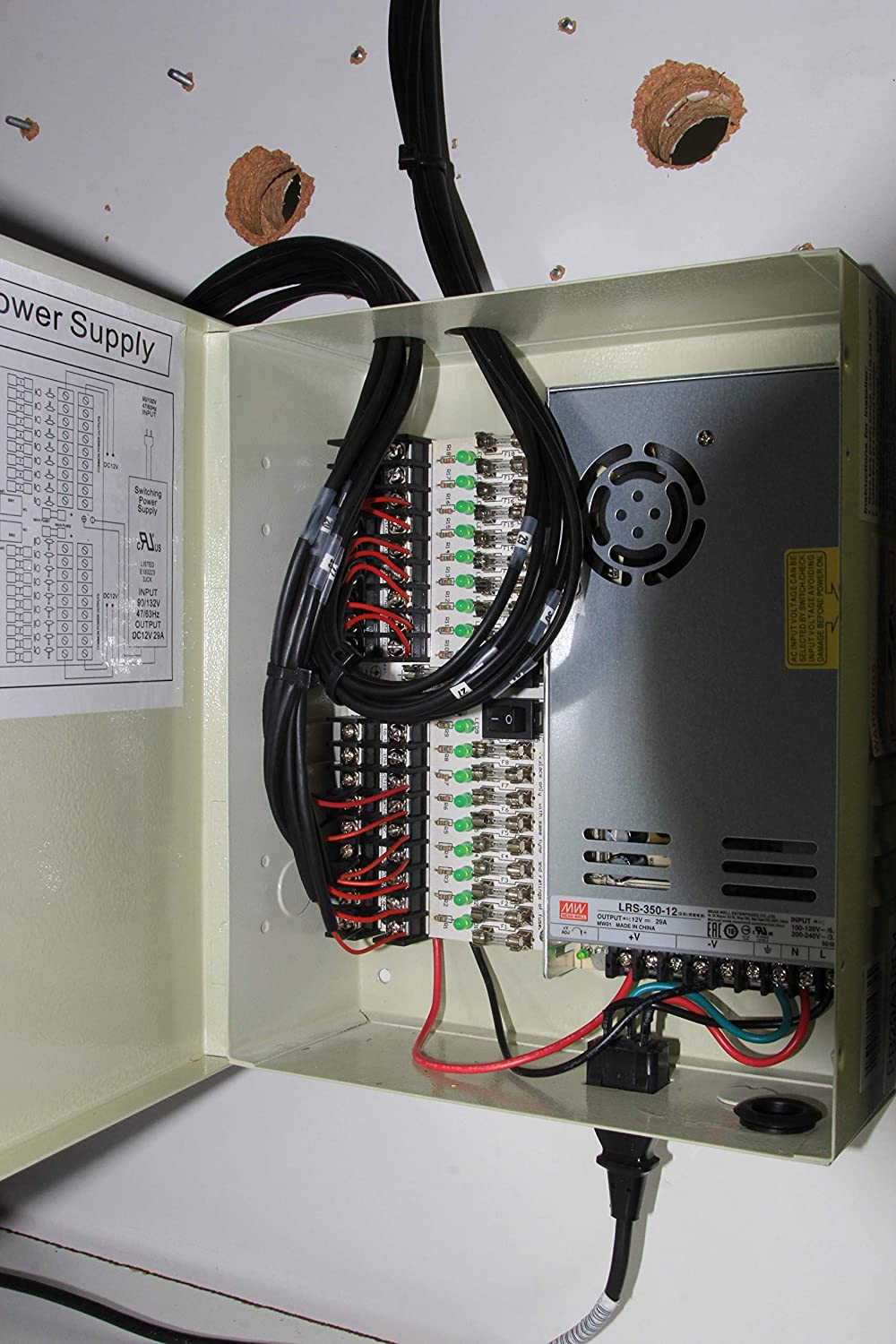

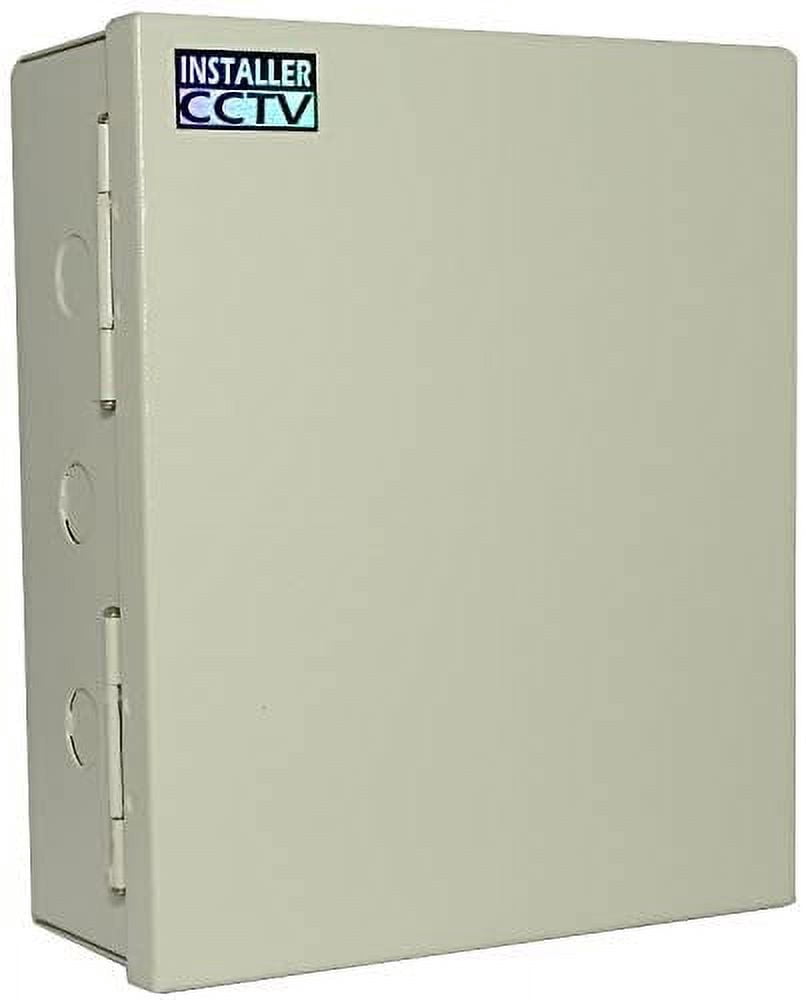

InstallerCCTV 9 Outputs 12 Amp 12V DC CCTV Distributed Power Supply Box for Security Camera, UL Listed

Our 9 channels power box is perfect for professional installers. It can support up to 9 cameras, offering a professional alternative to individual power adapters. In addition, our power box offers individual Fuse Output Protection. NOTE: The fuse for each channel is 1 Amp and total power consumption cannot exceed 12 Amp

• 90V -132V AC Input 60Hz; DC 12V Output regulated power box; Supports up 9 cameras, 9 individual outlet pairs. Max output 12Amp total; supports enough power for night vision cameras.

• Individual Fuse Output Protection,  Individual LED power Indication


• This power supply for the CCTV camera includes a 3 Prong AC Power Cord for the power box to plug into the wall, power supply output 12v. The power is Brand of Meanwell.

• Can be used to power most DC 12V devices, including CCTV security equipment, Mics, DVR, and Lighting equipment.

• Dimension: 9.5(W) x8(L) x3.25(H) UL listed, one-year warranty. Easy to use, just plug and use, UL Listed, Safety certified.

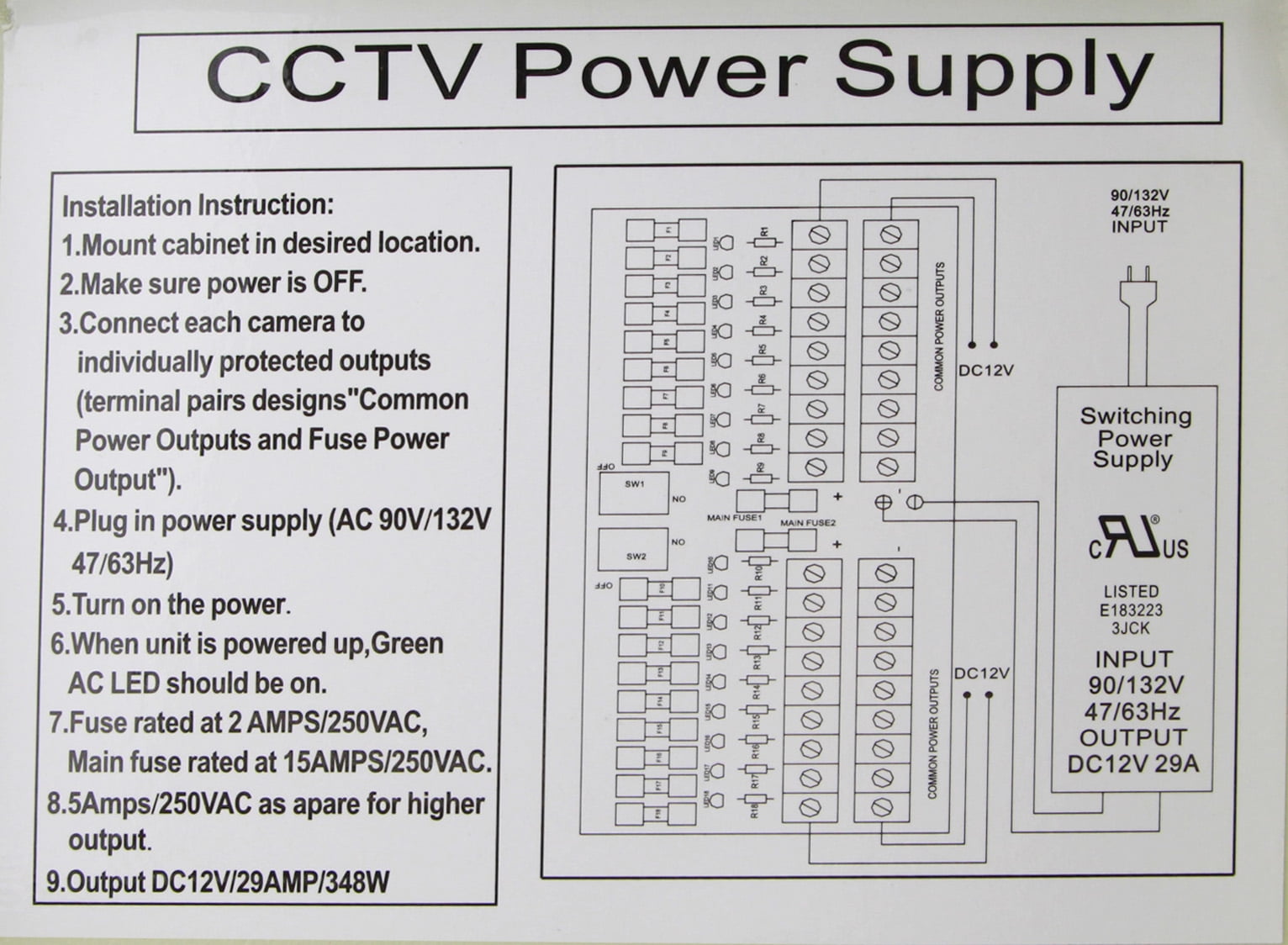

• Instructions for the installer:
• Make sure the power switch(I/O) is set to “OFF”.
• Install box at the desired location.
• Connect each camera to one”+/_” power output Pair, protected individually by a fuse.
• Connect AC power(115VAC50/60Hz) to the power box with the power cord provided.
• The green LEDs should light up when the power switch (I/O0 is set to “ON”
• The fuse is rated at 250VAC/1A
• To reduce the risk of fire, use only types SPT-2 cord or heavier duty cord, No. 18AWG copper at the minimum. Use wires suitable for at least 90 degrees.

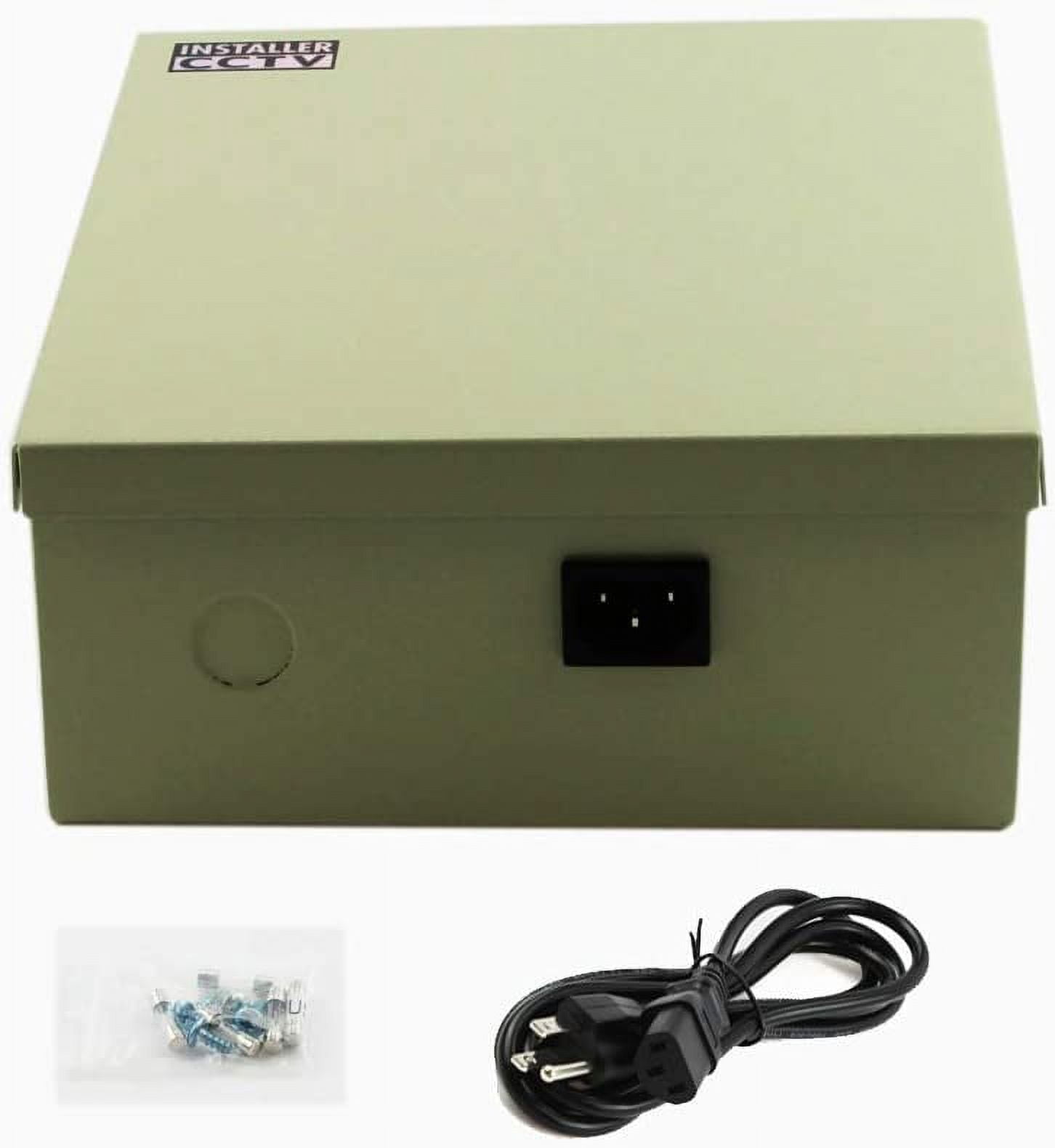

• Package Includes :
• 1x Power Box
• 1x 3 Prong Power Cord
• 1x User Manual
• 5x Spare Fuses
• 4 Mount Screws
